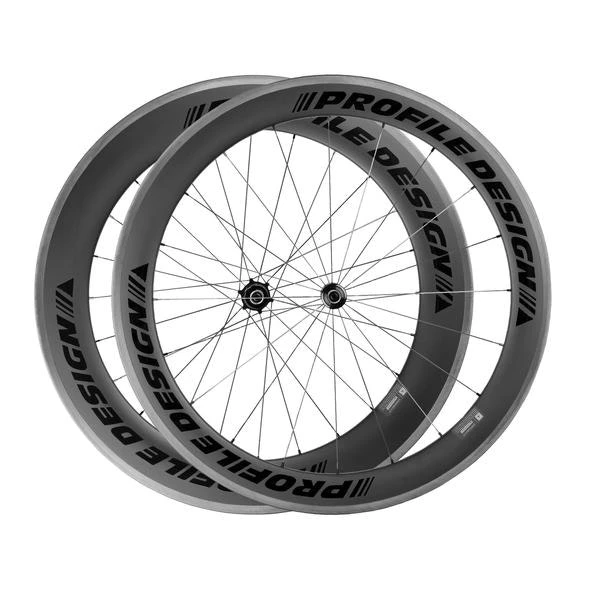

Profile Design 58/78/TwentyFour ii Clincher Carbon Wheelset

Extra stiff hub shell design

High TG resin and brake pads.

Brake Performance

Specifically formulated to withstand the same heat our rims can take on, our brake pad compound is exclusive for TwentyFour Series wheelsets. Using a specially formulated rubber compound, durometer and friction agent, we developed a proprietary brake pad and reduced braking distances over that of other carbon fiber wheelsets.

Specifications

Specifications

CFD and wind tunnel developed proprietary carbon fiber rim

Sapim CX Ray spokes with Sapim Polyax double square nipples

Sealed cartridge bearings

Hand-built assembly

Front Wheel

Weight: 770g

Size: 700c

Hub: 6061-T6 Alloy

Bearing Size: 6901

Hub Compatibility: QR

Rim Depth: 58mm

Rim Width (Outside): 24.5mm

Rim Width (Inside): 17mm

Color: UD Carbon

Spokes: Sapim® CX-Ray Aero Spoke

Spoke Shape: Straight Pull, Bladed

Spoke Count: 20

Spoke Pattern: Radial

Spoke Length: 252mm

Nipples: 7075 Alloy Polyax Double Square

External Nipples: Yes

Max Tire Pressure: 125psi / 8.27 bar

Tire Width: 25-28c

Rear Wheel

Weight: 1050g

Size: 700c

Hub: 6061-T6 Alloy

Bearing Size: 6802

Hub Compatibility: Shimano/SRAM: 9/10sp, 11sp – QR

Rim Depth: 78mm

Rim Width (Outside): 24.5mm

Rim Width (Inside): 17mm

Color: UD Carbon

Spokes: Sapim® CX-Ray Aero Spoke

Spoke Shape: Straight Pull, Bladed

Spoke Count: 24

Spoke Pattern Non-Drive: Radial

Spoke Pattern Drive: 2 cross

Spoke Length Non Drive: 235mm

Spoke Length Drive: 242mm

Nipples: 7075 Alloy Polyax Double Square

External Nipples: Yes

11-Speed Compatible Hub: Yes

Max Tire Pressure: 125psi / 8.27 bar

Tire Width: 25-28c

Wheelset

Set Weight: 1795g

Max Recommended Rider Weight (lbs): 220lbs

Profile Design valve extenders.

Profile Design rim tape.

Profile Design quick-release skewers.

Profile Design Carbon-Specific P220 TwentyFour Series brake pads.

2 Spokes & 2 Nipples (extra).
